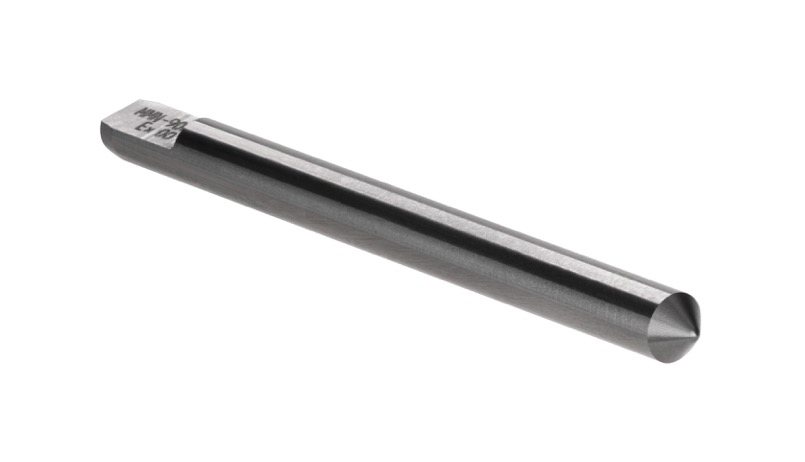

Marking tool
suitable for 20 mm collets and Weldon holders
Table of sizes marking needles
| Order No. | D1 [mm] |
L1 [mm] |
L2 [mm] |
R1 [mm] |
Weight [g] |
| MM20N-90R05 Ex00 | 3 | 36 | 0,0 | 0,5 | 3 |
| MM20N-90R10 Ex00 | 3 | 36 | 0,0 | 1,0 | 3 |
| MM20N-90R10 Ex01 | 3 | 36 | 0,1 | 1,0 | 3 |
| MM20N-90R10 Ex02 | 3 | 36 | 0,2 | 1,0 | 3 |
| MM20N-90R10 Ex03 | 3 | 36 | 0,3 | 1,0 | 3 |
← Drag table on smaller displays →
Features
Needles for rotary swaging:
MM20N-90R10 Ex01: Radius at the needle tip 1.0 mm, eccentricity 0.1 mm
MM20N-90R10 Ex02: Radius at the needle tip 1.0 mm, eccentricity 0.2 mm
MM20N-90R10 Ex03: Radius at the needle tip 1.0 mm, eccentricity 0.3 mm
Needles for rolling:
MM20N-90R10 Ex00: Radius at the needle tip 1.0 mm, eccentricity 0.0 mm
MM20N-90R05 Ex00: Radius at the needle tip 0.5 mm, eccentricity 0.0 mm
